PathBuilder™ Steerable Introducer Assembly..
Cardiovascular Electrophysiology Therapeutic field
OEM/ODM and private-label options available on request — ask our export team.
The PathBuilder® adjustable bend guide sheath kit consists of an adjustable bend sheath, a dilator, and a guidewire. It is used in ablation procedures to provide stable support for the catheter and, innovatively, enhances catheter access to specific cardiac locations by adding bidirectional bend control.
Features
Braided main body for improved catheter placement stability
Soft PEBAX tip for heart protection
With contrast-enhancing ring, the entire catheter is visible under X-ray; contrast-enhancing points are embedded at the tip for clearer positioning under X-ray guidance
Flexible bend for easier catheter placement
Equipped with a three-way valve for aspiration, fluid resuscitation, blood sampling, and pressure monitoring
Equipped with a hemostatic valve to reduce blood loss during device changes

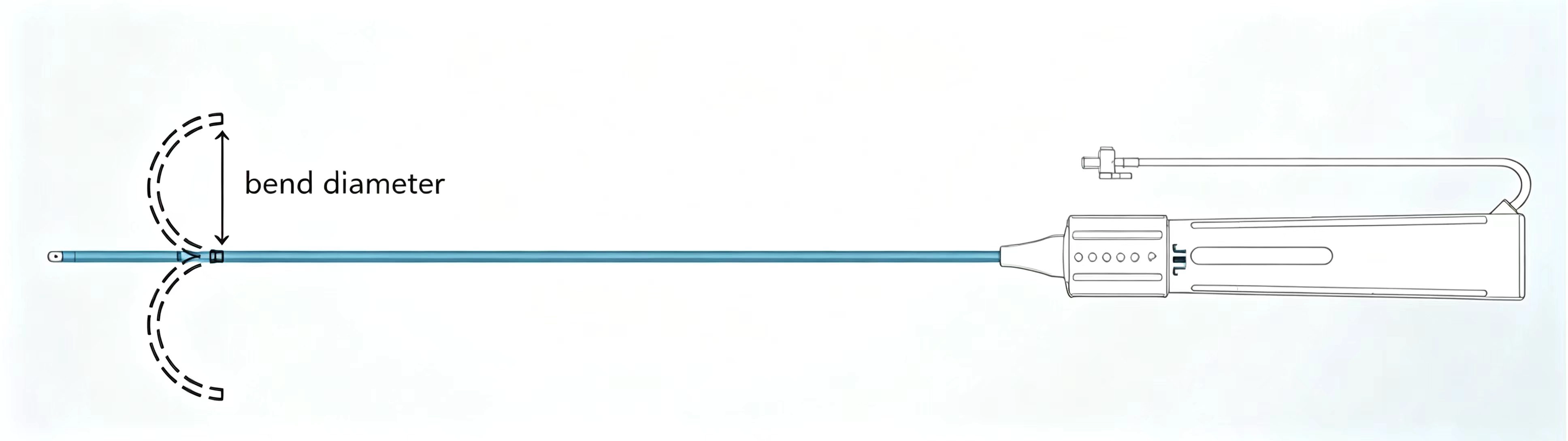

| Adjustable curved sheath assembly model | curved | Bending diameter (mm) | Guiding sheath | expander | guide wire | |||
|---|---|---|---|---|---|---|---|---|
| Length (cm) | Inner diameter(F) | Length (cm) | Distal shape | Length (cm) | Outer diameter (inch) | |||
| SIS7185* | S | 16.8 | 71 | 8.5 | 95 | bend | 180 | 0.032 |
| SIM7185* | M | 22.4 | 71 | 8.5 | 95 | bend | 180 | 0.032 |
| SIL7185 | L | 50.0 | 71 | 8.5 | 95 | bend | 180 | 0.032 |
| SIS6185 | S | 16.8 | 61 | 8.5 | 85 | bend | 180 | 0.032 |
| SIM6185 | M | 22.4 | 61 | 8.5 | 85 | bend | 180 | 0.032 |
* indicates commonly used specifications.
