Electrophysiological Consumable Items
EasyFinder™ Steerable Curve Diagnostic Catheter
Cardiovascular Electrophysiology Therapeutic field
Key Specifications
Device Class
Class II
Application
treating complex cardiac arrhythmias
Certification
CE
OEM/ODM and private-label options available on request — ask our export team.
Published: 2026-08-20 · Views: 184
Product Details
EasyFinder™ Steerable Curve Diagnostic Catheter is utilized in conjunction with a multi-channel electrophysiology recorder or stimulator for cardiac electrical signal mapping during examinations and procedures.
Enables Mapping of Multiple Sites
Facilitates Catheter Placement in Complex Cardiac Anatomies
Enhancing procedural efficiency, and reducing radiation exposure
Precise Tip Control
Allows easy approach to the target anatomy
Delivers Clear and Stable Electrocardiographic Signals after Prolonged Immersion

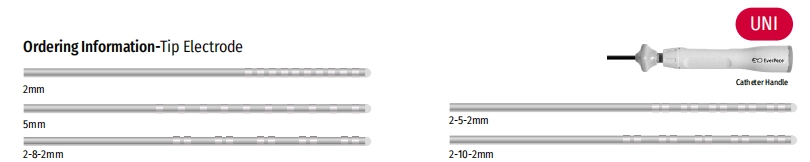

| Poles | Length (cm) | Diameter (F) | Spacing (mm) | Indication |
|---|---|---|---|---|
| 4——20 | 65——115 | 6——7 | 2-2-2——10-10-10 | RV/ RA/ HIS/CS |
Associated Cable
| Model | Connects | Length (m) | Connector | |
|---|---|---|---|---|
| at Catheter | at System | |||
| C0G004 | Quadrapolar Steerable Curve Diagnostic Catheter to Columbus™ System PIU | 2 | 10-Pin | 4-Pin |
| C0G010 | Decapolar Steerable Curve Diagnostic Catheter to Columbus™ System PIU | 2 | 10-Pin | 10-Pin |
| C0G014 | Tridepolar Steerable Curve Diagnostic Catheter to Columbus™ System PIU | 2 | 14-Pin | 14-Pin |
| 4P0610CT | Quadrapolar Steerable Curve Diagnostic Catheter to Columbus™ System Max | 2.5 | 10-Pin | 6-Pin |
| DC1210CT | Decapolar Steerable Curve Diagnostic Catheter to Columbus™ System Max | 2.5 | 10-Pin | 12-Pin |
